THE CHALLENGE
Adapting to Diverse Bone Qualities
Preparing the osteotomy site demands precision adapted to varying bone qualities (D1-D4). The drilling instruments must offer reliability, longevity, and versatility for both bone removal and condensation techniques.
THE SOLUTION
Features showcase
Experience the ultimate in drilling efficiency and control with Roott R Implant Drills, versatile instruments designed for both precise bone removal and effective osseodensification.
Dual-Mode Operation
Clockwise cutting for precise bone removal and counterclockwise rotation for effective osseodensification, enhancing primary stability in soft bone.
Medical Alloy Excellence
Crafted from a special medical alloy with superior hardness compared to standard surgical steel, ensuring exceptional wear resistance.
One-Step Protocol
Customized shapes tailored for specific systems support a streamlined one-step drilling sequence and optimal torque transfer.
Guided Integration
Fully compatible with surgical sleeves for highly accurate guided implant placement in complex clinical scenarios.
Protocol Guidance
Recommended protocols are included for bone types D1-D3 (follow dotted lines) and D4 (use counterclockwise rotation and one size thinner drills).
Surgical Precision Tools
Versatility
Accommodates both conventional cutting and osseodensification techniques within a single toolkit.
Safety
The cylindrical upper portion prevents collisions with healing abutments and ensures accuracy with surgical sleeves.
Precision Stoppers
Integrated stoppers (S1, S2, S3) matched to drill diameters for controlled and reliable depth preparation (2mm to 16mm).
GENERAL INFORMATION
Drill Inventory

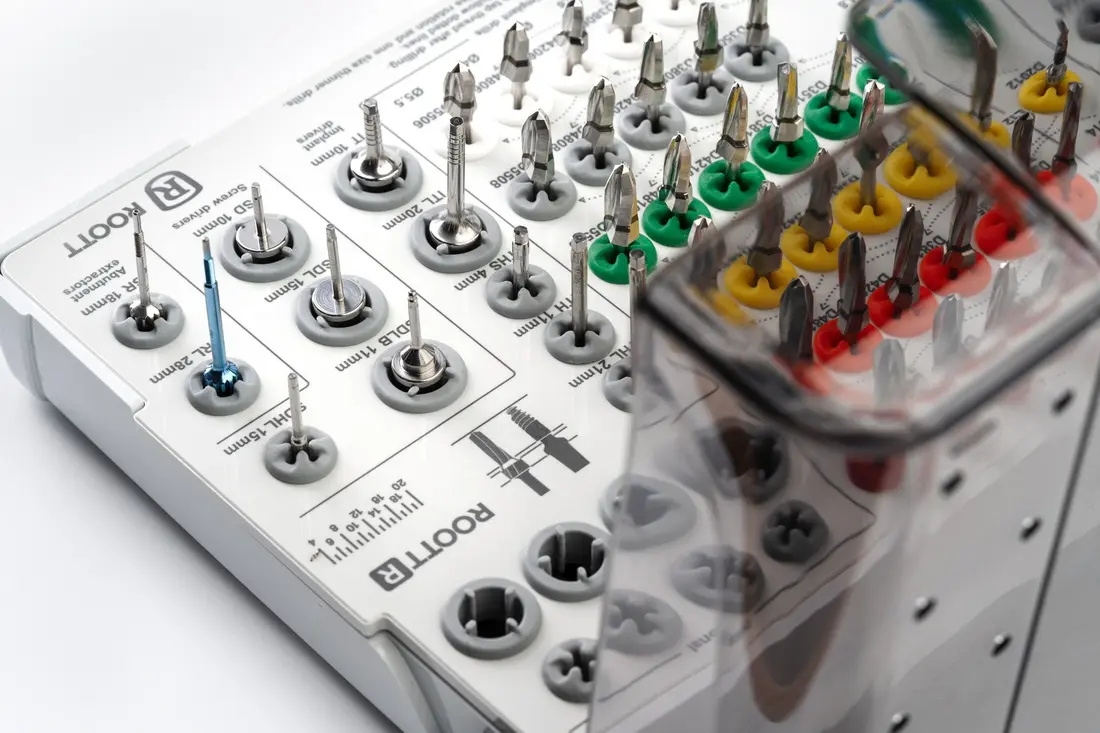

The ROOTT Drill Kit includes a wide variety of drills categorized by diameter and length to accommodate every clinical scenario, ranging from initial mark drills to large diameter finishing burs (e.g., D3006 through D7512).
Essential Accessories
ET Drill Extension
Provides additional reach for difficult access sites and adjacent tooth clearance.
TW70 Torque Wrench
Precise force application with clear markings up to 70 Ncm for absolute control.
